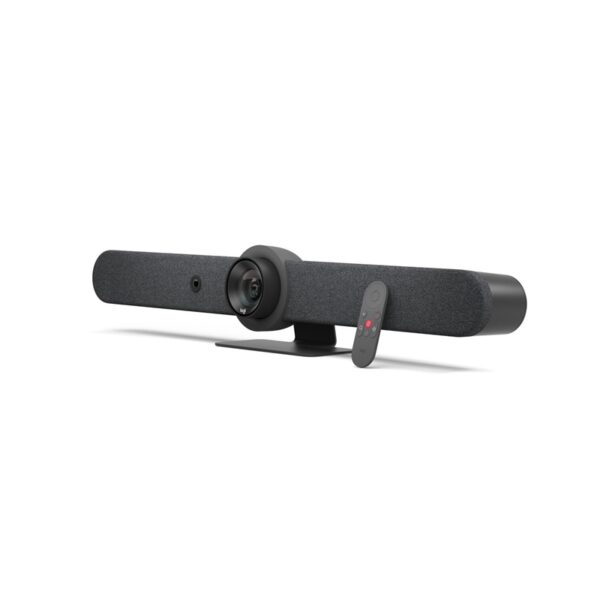

Logitech Rally Bar

Product number
Graphite: 960-001311
White: 960-001323

Dimensions
Height: 164 mm
Width: 910 mm
Depth: 130.5 mm
Lens depth: 28.8 mm
Weight: 7.08 kg

Technical specifications

Certifications and Compatibility

For the most up-to-date information on certifications and compliance, visit:
www.logitech.com/support/vc-certifications

• Microsoft Teams Rooms on Android - for medium and large rooms

• Microsoft Teams Rooms on Windows - for medium and large rooms

General characteristics

• Built-in components: 6 directional microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and hiding system, table stand, Logitech CollabOS platform.

• Enclosure: All-in-one, with integrated table stand and patented speaker suspension system to eliminate vibration and interference.

• Device Management:Logitech Sync

• Supported displays: 2

• Display resolution: up to 1080p

• Network protocol support: IPv4, IPv6

• Proxy support: IP-based, FQDN-based, PAC file

Camera

• Resolution: 4K, 1440p, 1080p, 900p, 720p and SD at 30fps

• Panorama: motorized ±25°

• Tilt: motorised ±15°

• Zoom: 15X HD (5X optical + 3X digital)

• Diagonal field of view: 90°

• Horizontal field of view: 82.1°

• Vertical field of view: 52.2°

• Total room coverage: 132.1° horizontal × 82.2° vertical

Speakers

• Drivers: 2 × 70 mm

• Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, ±2dB at 0.5m

• Rated power: 8W

• THD: < 2% at 1 kHz and 1W

• Sampling rate: 48 kHz

• Impedance: 4 Ω

Microphones

• Frequency range: 90Hz - 16kHz

• Sensitivity: > -36dBFS ±1 dB @ 1Pa

• Output frequency: 48 kHz

• Capture range: up to 7 m

• Directionality: 6 omnidirectional digital MEMS microphones with 5 adaptive beams

• Audio processing: AEC (acoustic echo cancellation), VAD (voice activity detection)

• Noise suppression: AI-based algorithm

• Additional Microphones: Supports up to 4 Rally Mic Pods and 2 Rally Mic Pod Hubs for larger rooms

RightSense™ technology

• RightLight: Reproduces natural skin tones

• RightSightA: The main camera monitors the active speaker while the AI Viewfinder captures all

• RightSound: Distinguishes speech from noise and automatically equalizes sound

• Grid View: Captures and frames all participants for an equitable hybrid experience

Interfaces

• HDMI Out: 2 (up to 1080p)

• HDMI In: 1

• USB: 3× Type A, 1× Type C

• Network: 10/100/1G Ethernet

• WiFi: 802.11a/b/g/n/ac

• External microphone: yes (supports Rally Mic accessories)

• Remote: Bluetooth Low Energy

Power supply and cables

• Power supply: auto detection

• Voltage/power: 100-240V, 19V, 4.74A

• Adapter dimensions: 127 × 51 × 30 mm

• DC cable: 1.5 m

• AC cable: 1 m

• HDMI 1.4: 2 m

• USB A-C 3.0: 2.2 m

Working environment

• Operating temperature: 0 - 40 °C

• Storage temperature: -40 - 70 °C

• Humidity: 10 - 95%

• BTU/hr: 57 (at rest), 64 (in a meeting)

Security

• Full disk encryption: AES-128

• Data encryption: symmetric keys, PKI

• Device Identity: With Authentication

• Device access: via API

• Key Protection: Arm TrustZone, RPMP

Accessories

• Installation: wall mounting and TV mounting for video bars

• Audio: Rally Mic Pod, Hub, Mount and Extension Cable

• Connectivity: Logitech Strong USB (10m, 25m, 45m)

• Controllers: Logitech Tap and Tap IP (compatibility may vary)

Warranty

• Standard: 2 year limited hardware warranty
