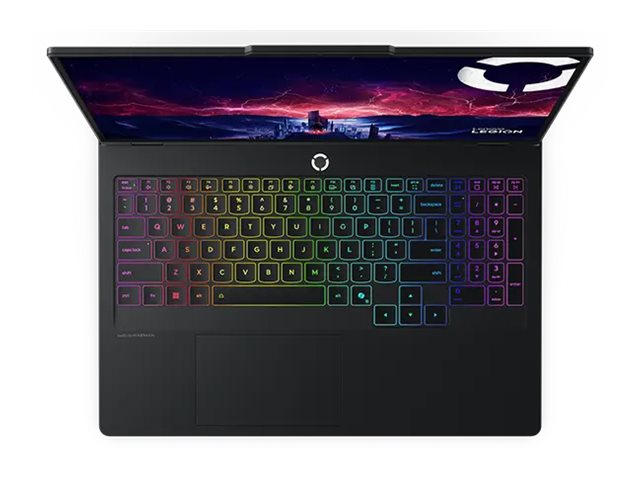

Experience high-quality gaming and productivity with the Lenovo Legion 5 16AFR10. This notebook features a 16-inch OLED display with a native resolution of 2560 x 1600, delivering vibrant colors and precise imagery, supported by 100% DCI-P3 color gamut coverage. The dynamic refresh rate of 165 Hz combined with NVIDIA G-SYNC technology ensures smooth performance during intense scenes, making it an ideal choice for gamers and creators.
Powered by the AMD Ryzen 9 processor with 16 cores, this machine supports multitasking capabilities and demanding software applications, ensuring optimal performance. Equipped with advanced audio features, including Harman audio technology and Nahimic audio, it provides rich sound quality that enhances the overall experience. The 5-megapixel webcam with an e-camera shutter adds versatility for virtual meetings and content creation, making this device suitable for both gaming and work. |
| Product Features |
- Vibrant display
The 16-inch OLED display provides a native resolution of 2560 x 1600, delivering vivid visuals and an aspect ratio of 16:10 for an immersive experience.
- Powerful processing
Featuring the AMD Ryzen 9 9955HX processor, this notebook delivers exceptional multitasking performance with a maximum turbo speed of 5.4 GHz.
- Immersive audio
The incorporation of Harman audio technology and Nahimic audio enhances sound quality, providing an immersive listening experience for gaming and entertainment.
- Enhanced connectivity
Equipped with multiple USB ports, HDMI output, and Wi-Fi 6 support, this device offers versatile connectivity options for various peripherals and high-speed Internet.
- Robust security
Includes a firmware Trusted Platform Module (TPM 2.0) security chip to ensure data protection and enhance security for sensitive information.
|
| Specifications |
|
|
| Manufacturer |
LENOVO |
| Manufacturer Part No |
83F20042BM |
| General |
| Product Type |
Notebook |
| AI Level |
AI PC |
| Operating System |
No operating system |
| EU Data Act |
Https://www.lenovo.com/us/en/compliance/eu-data-act-transparency-declaration/ |
| Processor / Chipset |
| CPU |
AMD Ryzen 9 9955HX / 2.5 GHz |
| Max Turbo Speed |
5.4 GHz |
| Number of Cores |
16-core |
| Cache |
L3 – 64 MB |
| Features |
Integrated memory controller |
| Memory |
| RAM |
32 GB (2 x 16 GB) |
| Max RAM Supported |
32 GB |
| Technology |
DDR5 SDRAM |
| Rated Speed |
5600 MT/s |
| Form Factor |
SO-DIMM 262-pin |
| Slots Qty |
2 |
| Empty Slots |
0 |
| Storage |
| Main Storage |
1 TB SSD M.2 2280 PCIe 4.0 x4 – NVM Express (NVMe) |
| Display |
| Type |
16″ OLED |
| Resolution |
2560 x 1600 (WQXGA) |
| V-Sync Rate at Max Res. |
165 Hz |
| Widescreen |
Yes |
| Image Aspect Ratio |
16:10 |
| Image Brightness |
500 cd/m² |
| Colour Gamut |
100% DCI-P3 |
| Features |
Glossy, NVIDIA G-SYNC compatible, Low Blue Light technology, Dolby Vision, High Gaming Performance Technology, X-Rite factory colour calibration, 91.7% screen-to-body ratio, HDR 1000 True Black |
| Audio & Video |
| Multi-GPU Configuration |
1 single GPU card / integrated GPU |
| Graphics Processor |
NVIDIA GeForce RTX 5060 / AMD Radeon 610M – up to 572 TOPS |
| Video Memory |
8 GB GDDR7 SDRAM |
| Gaming |
Yes |
| Camera |
Yes |
| Resolution |
5 Megapixel |
| Camera Features |
Fixed focus, e-camera shutter |
| Sound |
Stereo speakers, dual array microphone |
| Codec |
Realtek ALC3306 |
| Compliant Standards |
High Definition Audio |
| Audio Features |
Output: Harman audio technology, Nahimic audio |
| Input |
| Type |
Keyboard, touchpad |
| Keyboard Backlight |
Yes (RGB) |
| Keyboard Layout |
Bulgarian |
| Numeric Keypad |
Yes |
| Features |
Buttonless touchpad, precision multi-touch touchpad, 24 RGB zones |
| Communications |
| Wireless |
802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Network Interface |
Gigabit Ethernet |
| Features |
Dual stream (2×2) |
| Battery |
| Technology |
Lithium polymer |
| Capacity |
80 Wh |
| AC Adapter |
| Input |
AC 100-240 V (50/60 Hz) |
| Output |
245 watt |
| Connections & Expansion |
| Slots |
2 x M.2 (PCI Express 4.0 x4) (1 available) |
| Interfaces Details |
2 x USB 3.2 Gen 1
USB 3.2 Gen 2 (Always On)
USB-C 3.2 Gen 2 (supports DisplayPort 2.1 Alt Mode)
USB-C 3.2 Gen 2 (supports DisplayPort 2.1 Alt Mode) (65-100W Power Delivery)
HDMI (8K support)
Headphone/microphone combo jack (mini-phone 3.5 mm)
LAN (RJ-45) |
| Miscellaneous |
| Colour |
Eclipse black |
| Case Material |
Aluminium (top), polycarbonate ABS (bottom) |
| Surface Finish |
Anodising sandblasting |
| Security |
Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Features |
LA3 AI Chip |
| Included Accessories |
Power adapter |
| Compliant Standards |
RoHS, Energy-Related Products (ErP) Lot 3, TUV Rheinland Flicker Free Certification, TUV Rheinland Low Blue Light (Hardware Solution), TUV Rheinland High Gaming Performance, Pantone Validated, Pantone Skintone Validated |
| Localization |
Language: English / region: Bulgaria |
| Dimensions & Weight |
| Dimensions (WxDxH) |
36.438 cm x 26.806 cm x 2.169 cm |
| Weight |
2.3 kg |
| Manufacturer Warranty |
| Service & Support |
Base warranty – 2 years – pick-up and return
Limited warranty – battery – 1 year
Extended warranty – 3 years – pick-up and return |
| Bundled Services |
3 Years Lenovo Courier/Carry-in Support |
